PHOS 45 outdoor pro

Compact LED projector with great effect

  • Output power: 40 W
  • Luminous flux of the projector: 2,390 lumens
  • Projection lens: 85 mm Standard, exchangeable
  • LED service life (L70): 35,000 hours
  • Cooling: active, with fan – 25 dBA
  • Suitable for outdoor use – IP65

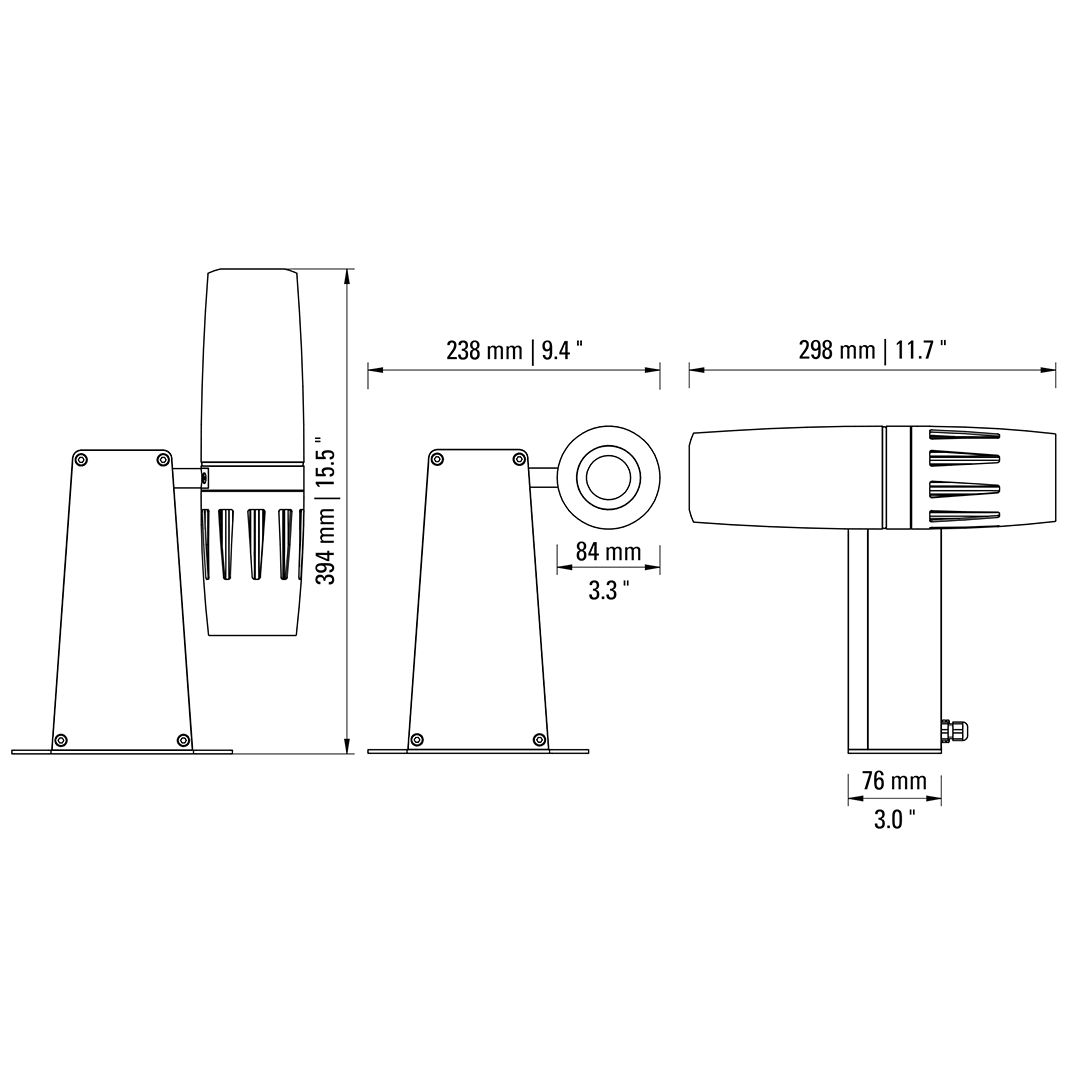

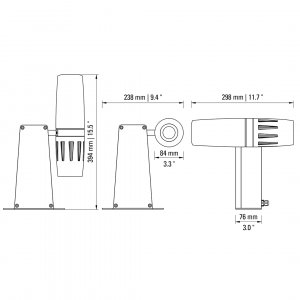

  • Dimensions (W x H x D): 298 x 394 x 238 mm
    11.7″ x 15.5″ x 9.4″
SKU: N/A

Description

PHOS 45 outdoor pro is a projector for professional indoor and outdoor use with uncompromising technical features: IP65 protective housing, high efficiency, durable, extremely reliable components. The projector is particularly suitable for use as a safety system in an industrial environment or for demanding outdoor lighting installations – at any time of the year and in any weather! The projection motif (gobo) can be changed without tools.

Image Size & Brightness

Projection Calculator PHOS 45 Series

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

  • The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
  • The projection is at right angles to the projection surface.
  • The projection surface is a plane.
  • The distance is measured between lens and projection surface.

Downloads

Documents for Download

Technical Specifications PHOS 45 outdoor pro

Technical Specifications PHOS 45 outdoor pro DALI

Technical Specifications PHOS 45 outdoor pro 1–10 V

Information for Use PHOS 45–85 outdoor pro
