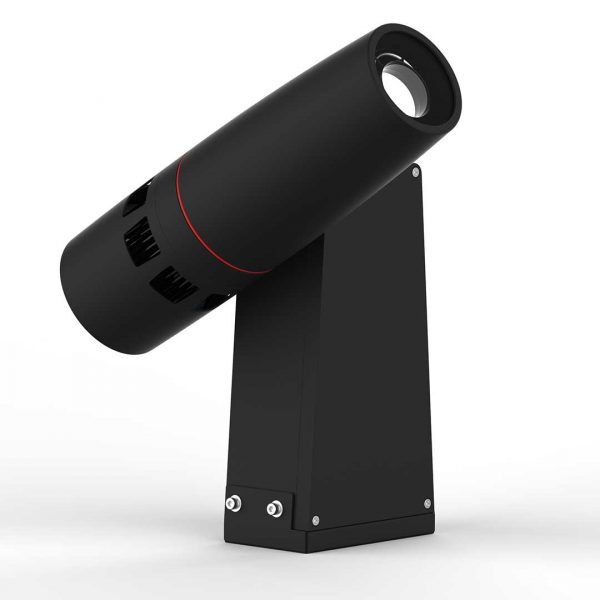

PHOS 160 Goboprojektor mit schwarzem Gehäuse.

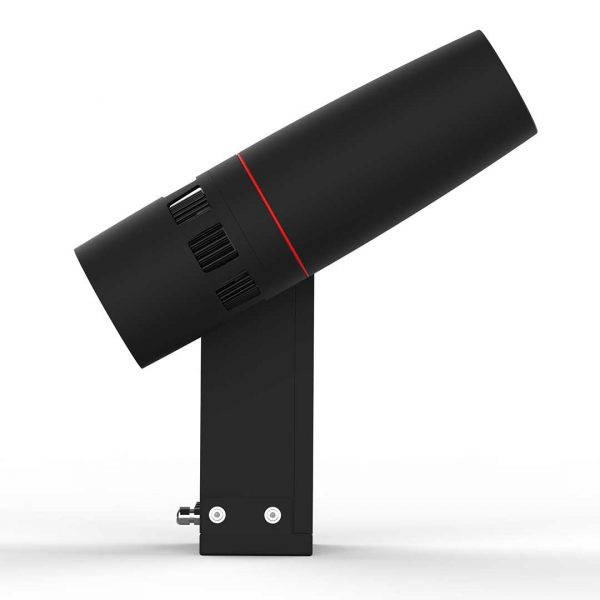

PHOS 160 Goboprojektor mit schwarzem Gehäuse, in Seitenansicht.

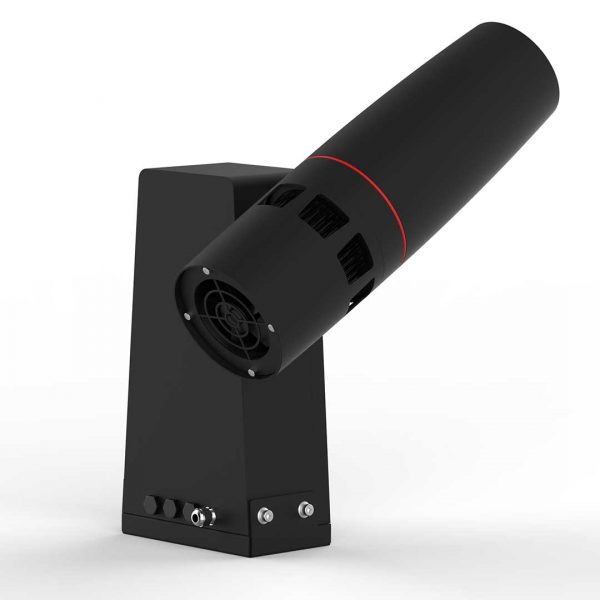

PHOS 160 Goboprojektor mit schwarzem Gehäuse, in einer Ansicht von der Rückseite.

Linienzeichnung mit Bemaßungen vom PHOS 160 Goboprojektor.

PHOS 160

Powerful LED projector for indoor and outdoor use

Output power: 160 W
Luminous flux of the projector: 9,600 lumens
Projection lens: 85 mm Standard, exchangeable
LED service life (L70): 35,000 hours
Cooling: active, with fan – 31 dBA
Suitable for both indoor and outdoor use– IP65

SKU: N/A

Description

The PHOS 160 is equipped with a new, powerful generation of LEDs. With an output power of 160 watts and a luminous flux of 9,600 lumens, the projector is suitable for large-format projections over medium and long distances. The housing with its IP65 protection class allows it to be used indoors and outdoors – even in dusty industrial plants or near the coast (with optional offshore coating). As with all Derksen projectors, the motif is durable and can be changed without tools. The PHOS 160 pole mount version is available for direct mounting on pipes or poles.

Additional Accessories: individual glass gobo, made with your digital artwork, Extra Wide Angle Lens, f=45 mm, Standard Lens, f=85 mm (included in delivery), Telephoto Lens, f=135 mm, Extra Telephoto Lens, f=150 mm

Image Size & Brightness

Projection Calculator PHOS 160 Series

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
The projection is at right angles to the projection surface.
The projection surface is a plane.
The distance is measured between lens and projection surface.
