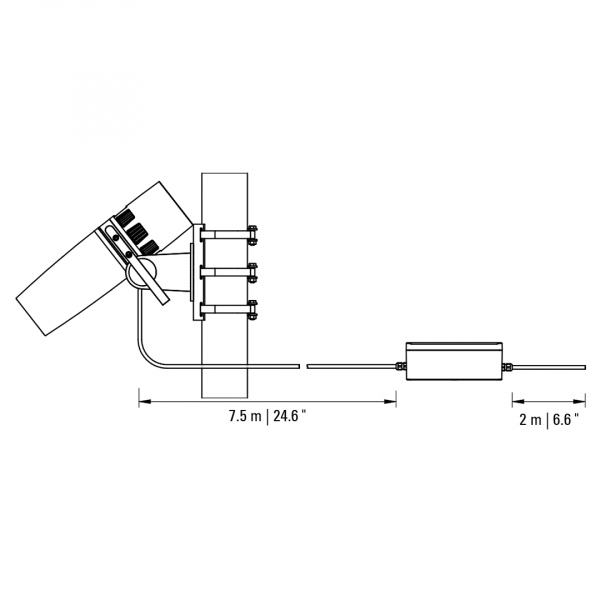

Linienzeichnung mit Bemaßungen der Anschlussleitungen des PHOS 160 pole mount.
PHOS 160 pole mount - Image 6
PHOS 160 pole mount - Image 7

PHOS 160 pole mount

Powerful LED projector for indoor and outdoor use

  • Output power: 172 W
  • Luminous flux of the projector: 10,700 lumens
  • Photo-biological safety (IEC62471-5:2015): RG-3
  • Projection lens: 85 mm Standard, exchangeable
  • LED service life (L70): 35,000 hours
  • Cooling: active, with fan – 31 dBA
  • Suitable for both indoor and outdoor use– IP65
SKU: N/A

Description

The PHOS 160 pole mount is equipped with a new, powerful generation of LEDs. With an output power of 172 watts and a luminous flux of 10,700 lumens, the projector is categorised in risk group 3 (RG-3) with regard to visible light hazards. Special safety measures are therefore required during installation, maintenance and operation. Detailed information can be found in the information for use.

The housing with its IP65 protection class allows it to be used indoors and outdoors – even in dusty industrial plants or near the coast (with optional offshore coating). As with all Derksen projectors, the motif is durable and can be changed without tools. For mounting on surfaces (wall, ceiling, etc.), the PHOS  160 version is available.

Available Accessories: individual glass gobo, made with your digital artwork, Extra Wide Angle Lens, f=45 mm, Standard Lens, f=85 mm (included in delivery), Telephoto Lens, f=135 mm, Extra Telephoto Lens, f=150 mm

Image Size & Brightness

Projection Calculator PHOS 160 Series

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

  • The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
  • The projection is at right angles to the projection surface.
  • The projection surface is a plane.
  • The distance is measured between lens and projection surface.

Downloads

Documents for Download

Technical Specifications PHOS 160 pole mount

Information for use PHOS 160 pole mount
