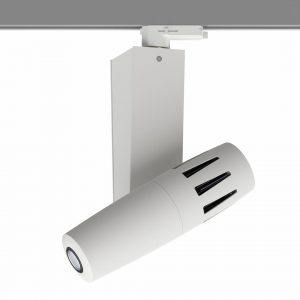

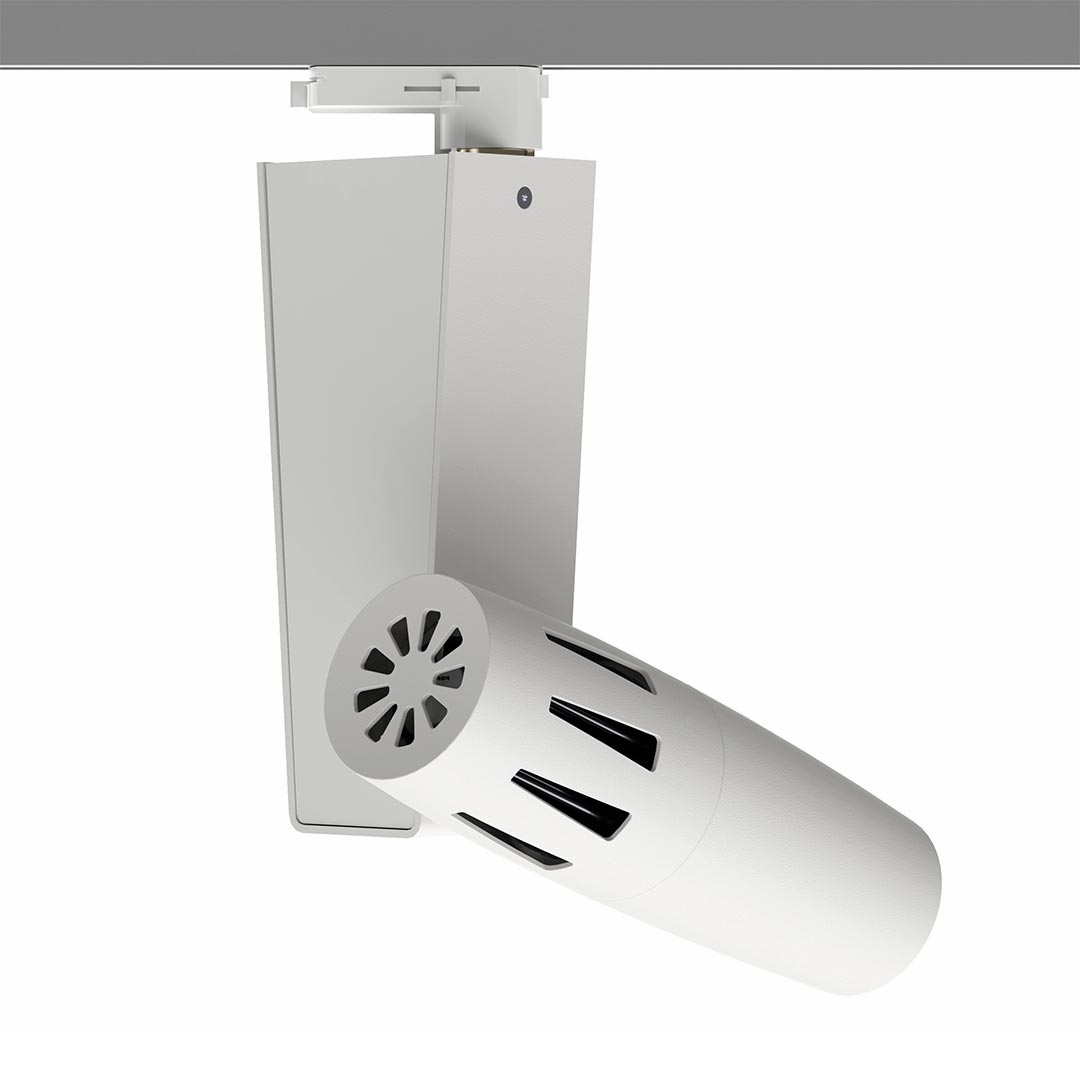

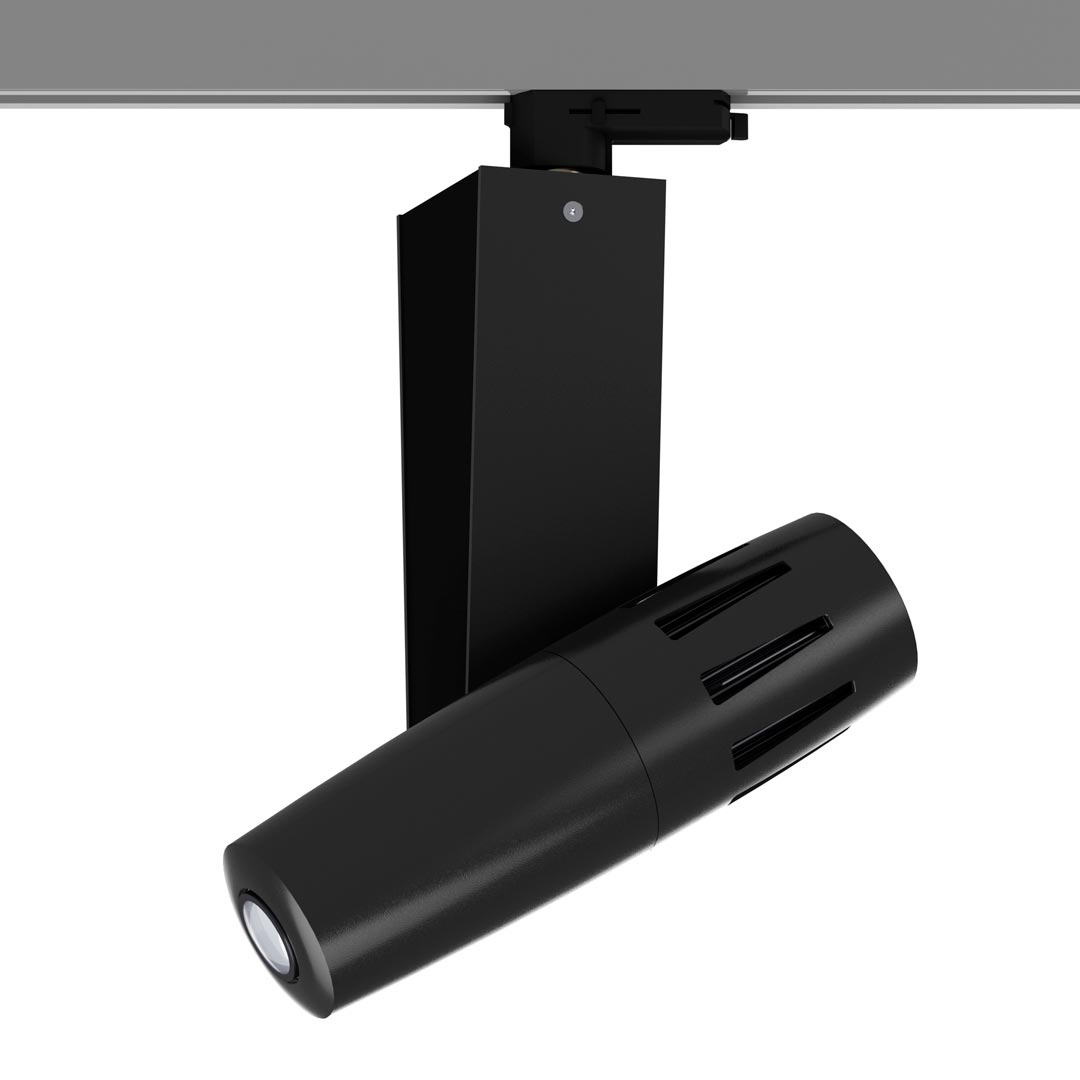

PHOS 85 LT

Compact LED projector for lighting tracks

Output power: 80 W
Luminous flux of the projector: 4,730 lumens
LED service life (L70): 35,000 hours
Cooling: active, with fan – 29 dBA
Gobo size / image size: Ø 50 / 40 mm
Projection lens: 85 mm Standard, interchangeable
Environment: dry interiors
Mounting style: 3-phase lighting tracks

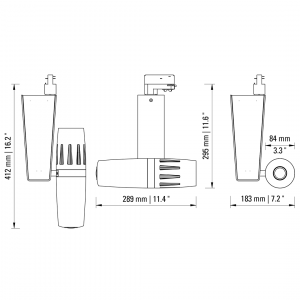

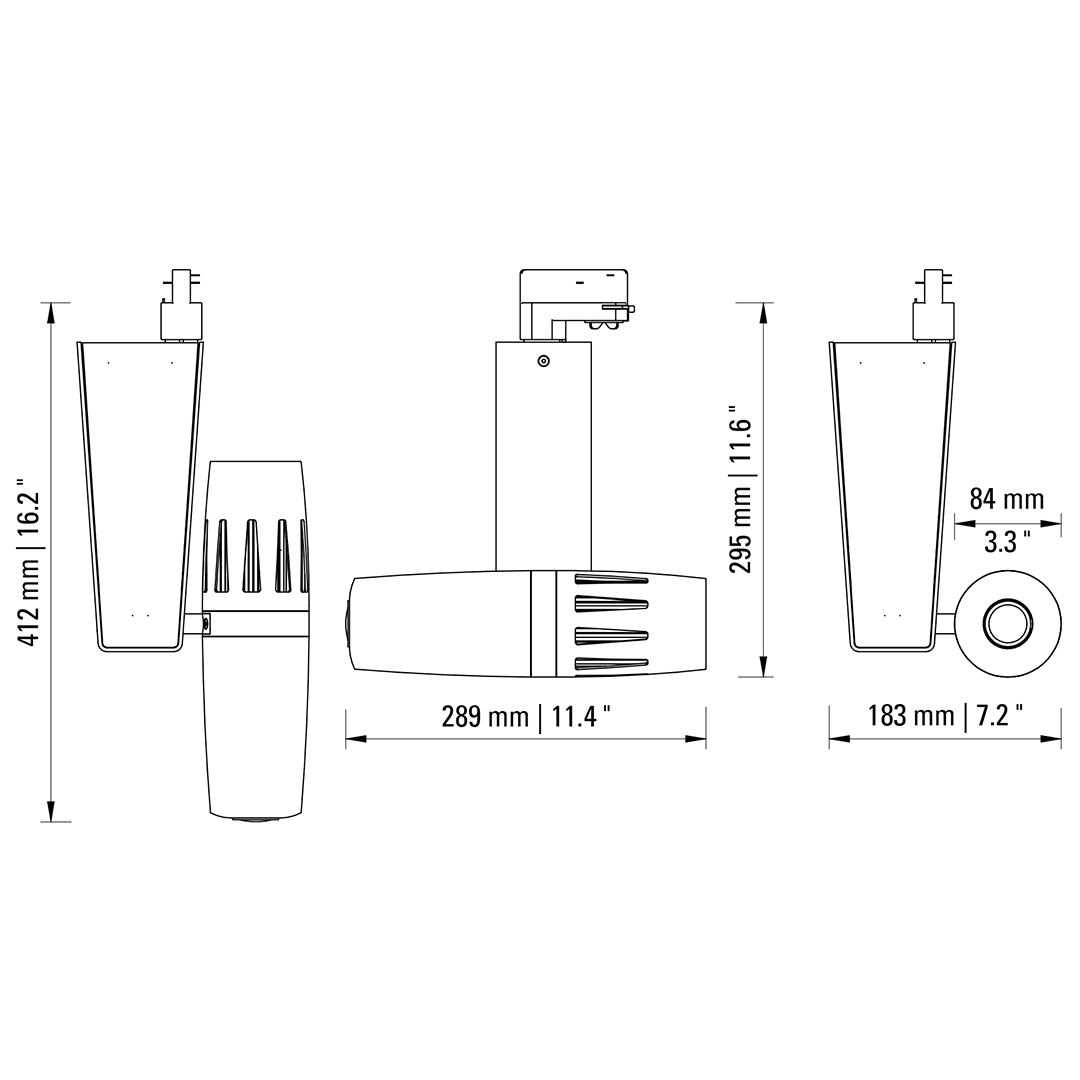

Dimensions (B x H x T): 289 x 295 x 183 mm

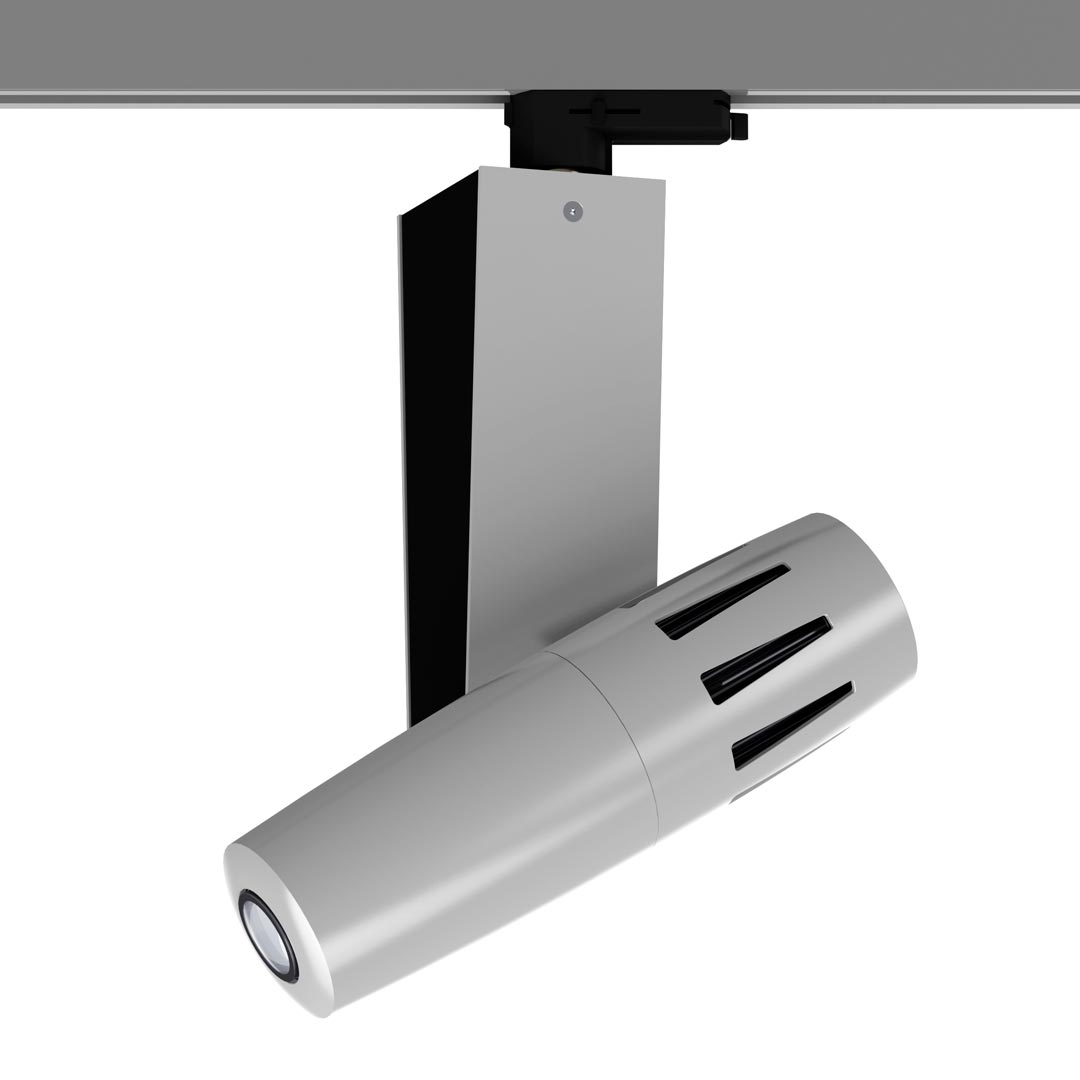

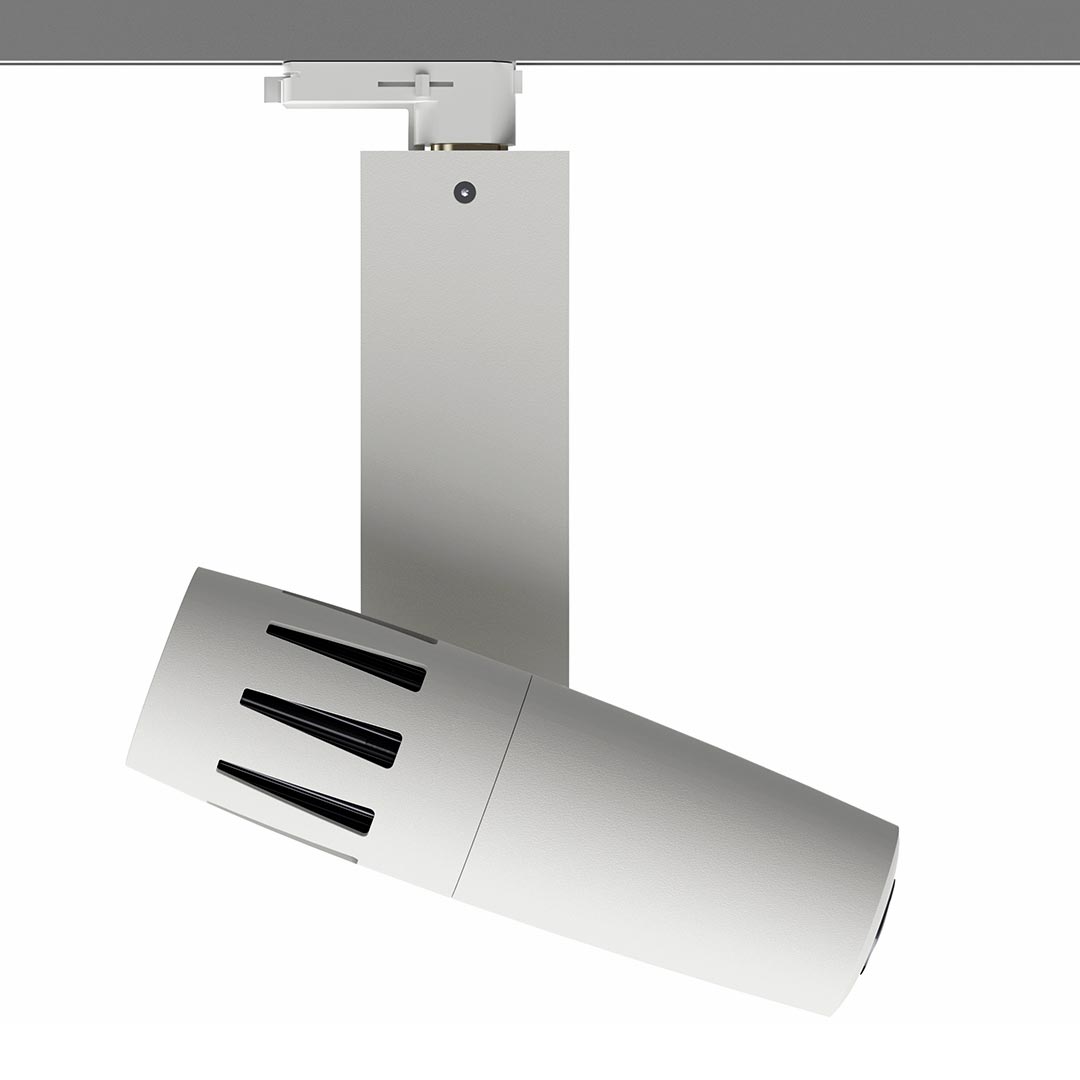

Housing colors: silver, white, black

Item number:

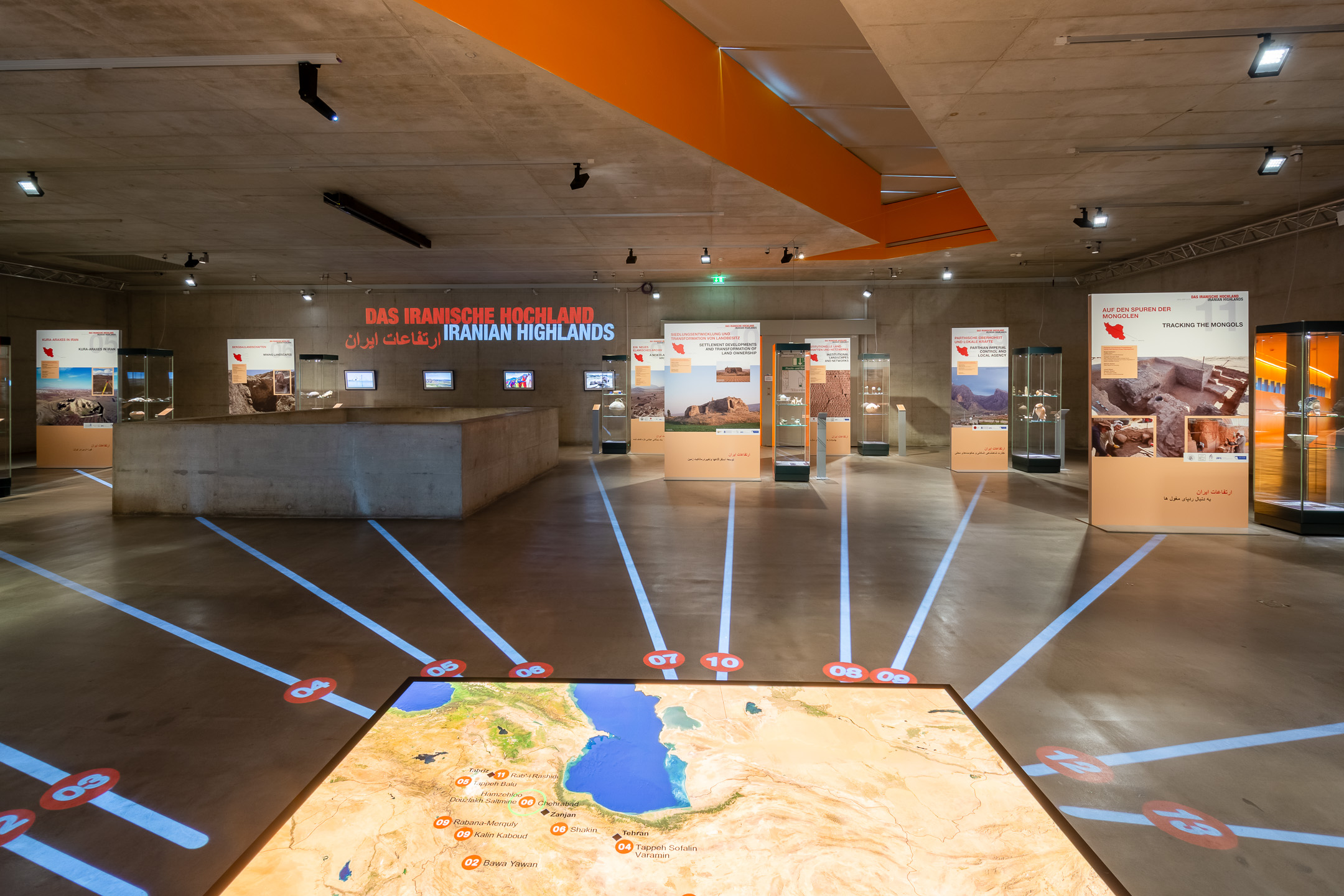

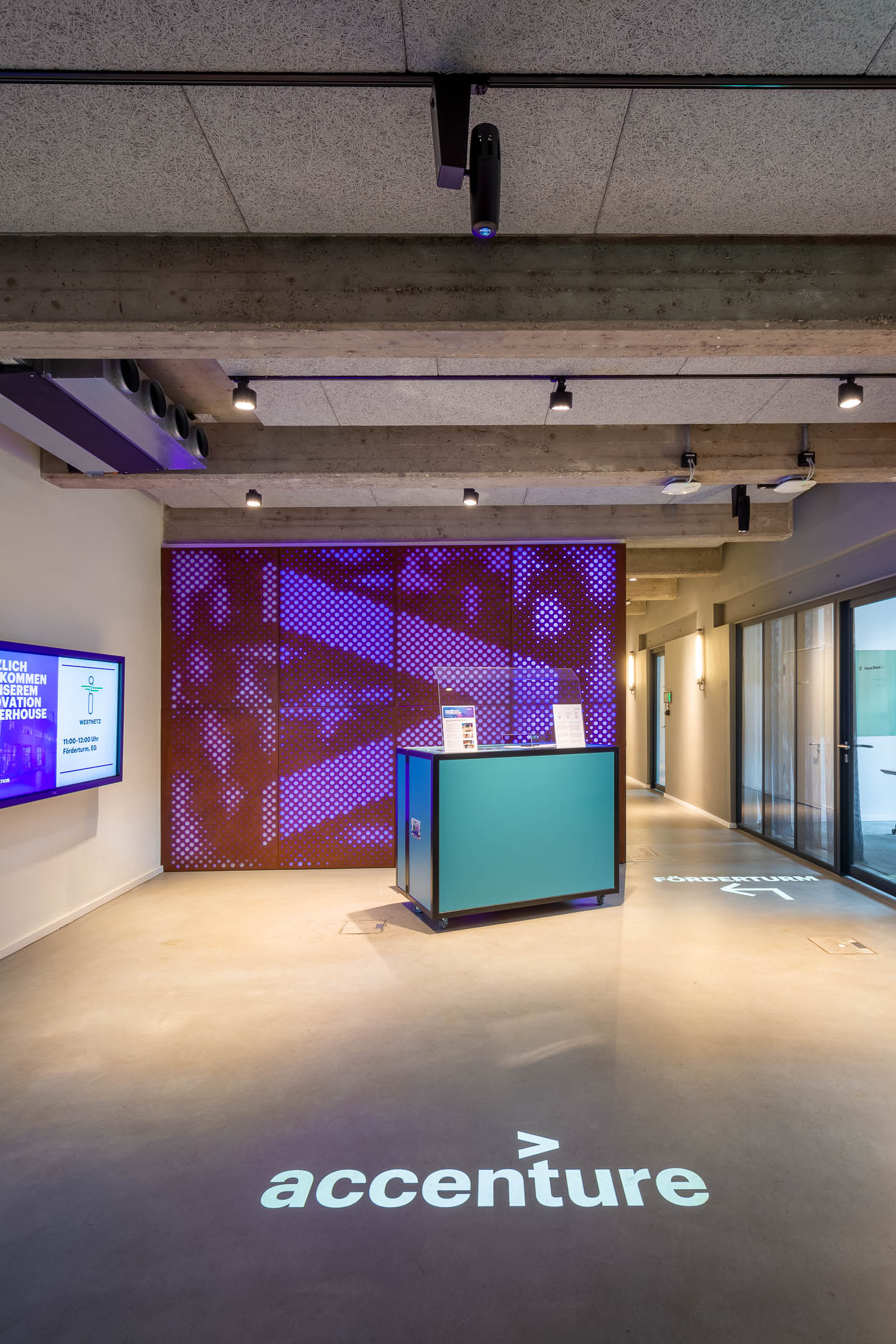

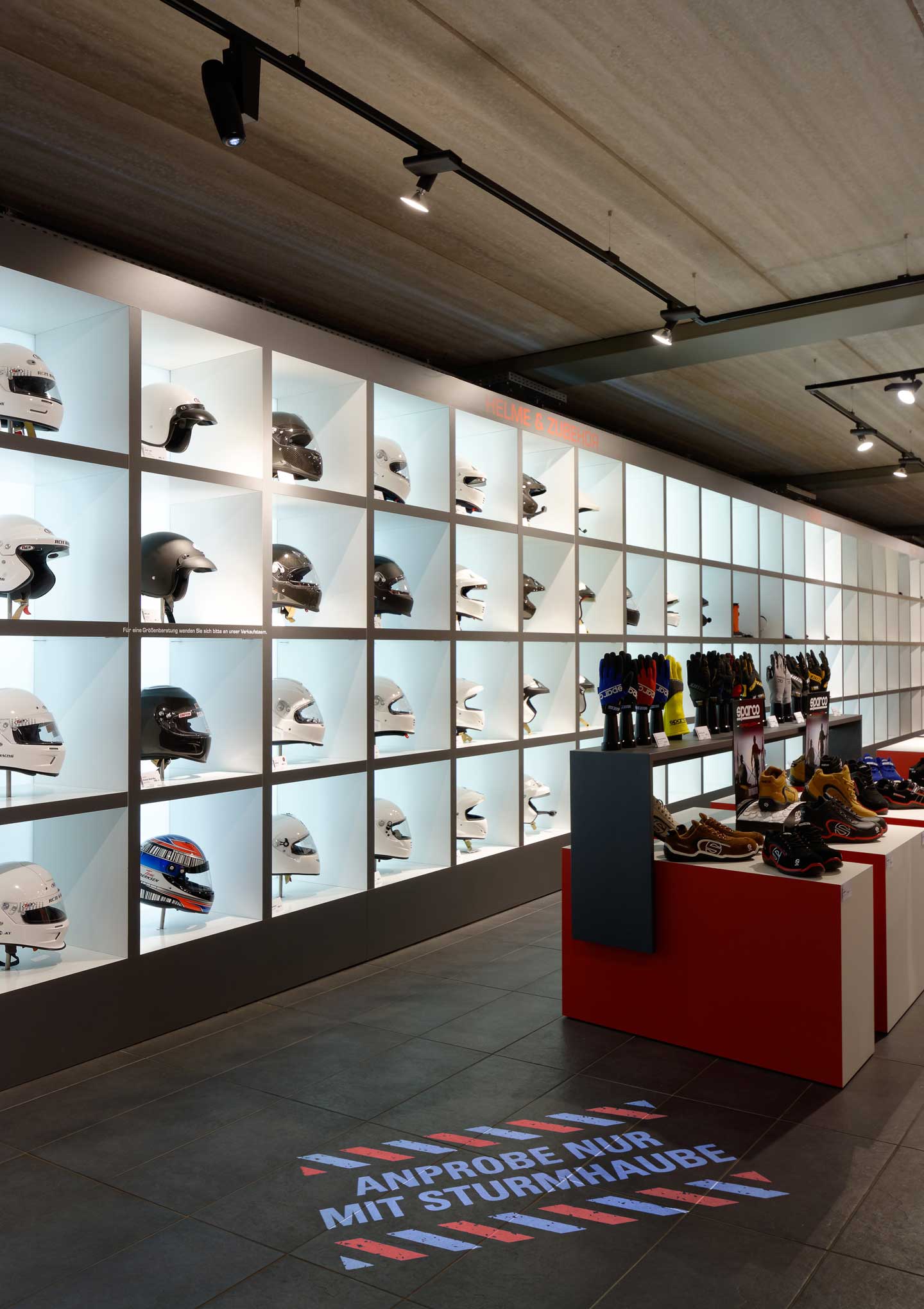

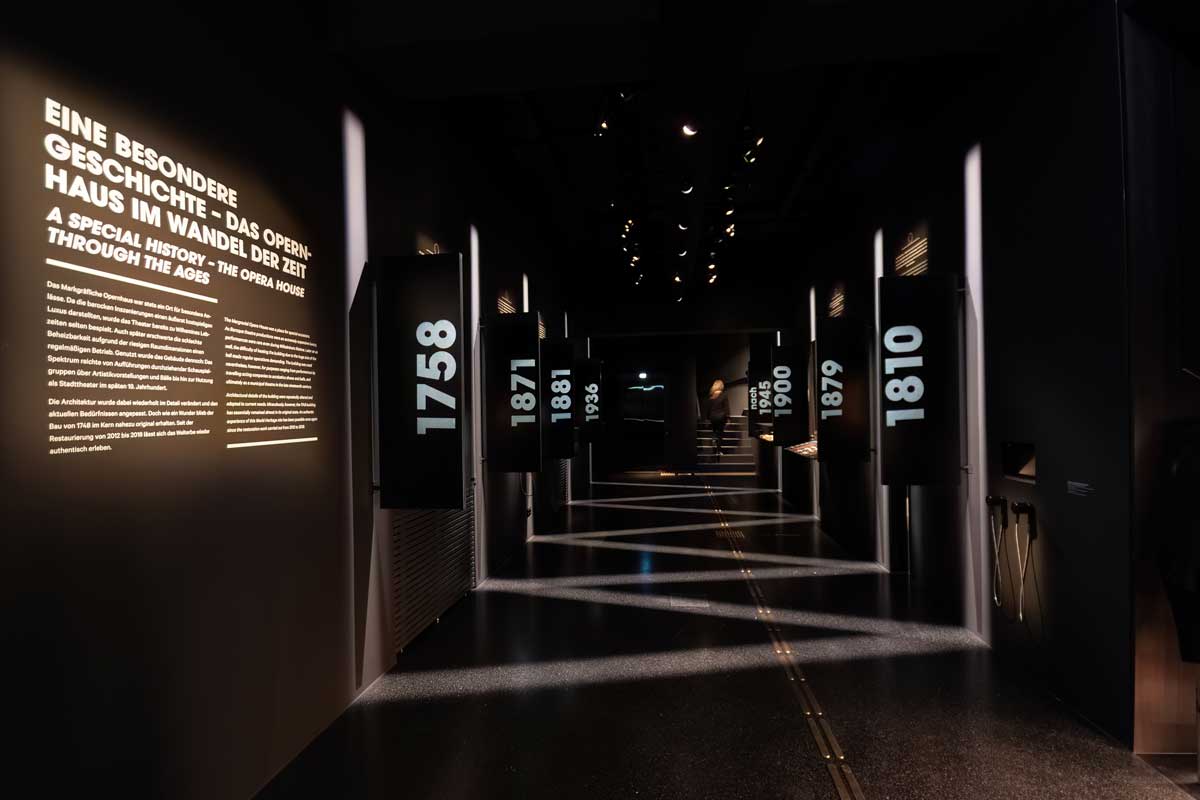

PHOS 85 LT is the most powerful projector for 3-phase lighting tracks and, with its 80-watt high-performance LED, offers uncompromising brightness that guarantees brilliant, high-contrast projection in almost any situation. PHOS 85 LT is the optimal solution when the ambient light is brighter, when projecting onto colored or dark surfaces, or when colored motifs are to be displayed. The device is equipped with a noise-optimized fan that dissipates heat from the heat sink. PHOS 85 LT is suitable for variable use in lighting track systems. Recommended locations include museums, trade fairs, shopping malls, and large entrance halls. The projection motif (gobo) can be changed without tools.

Projection Calculator PHOS 85 Series

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
The projection is at right angles to the projection surface.
The projection surface is a plane.
