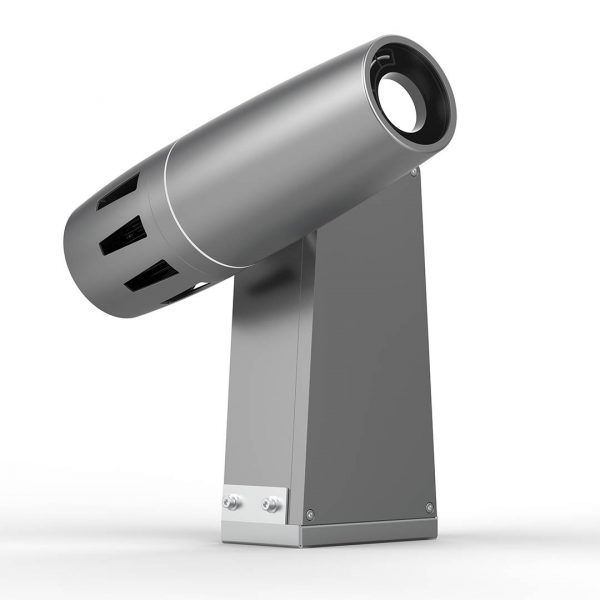

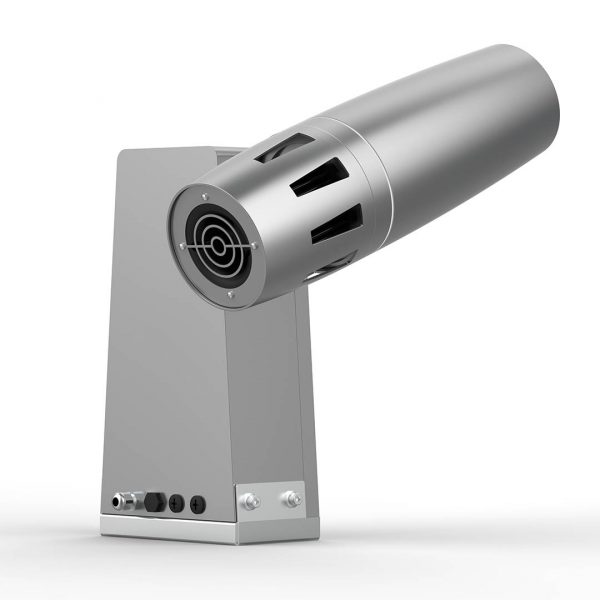

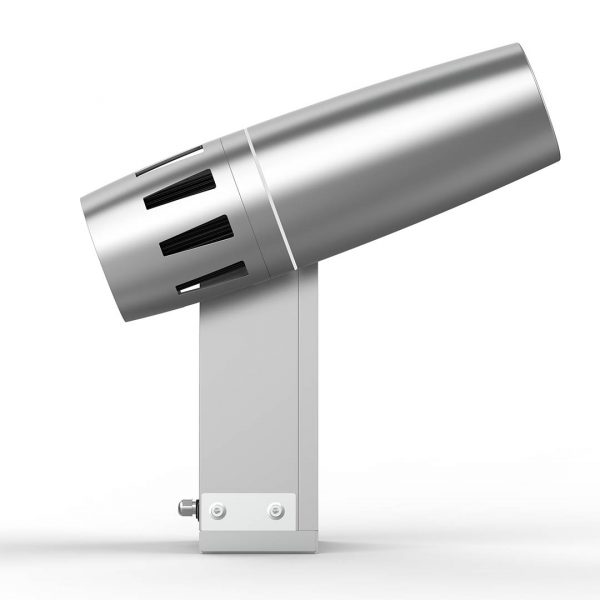

PHOS 45 rotator outdoor

LED projector with rotation effect for spinning projection motifs

  • Output power: 40 W
  • Luminous flux of the projector: 2,390 lumens
  • Direction of rotation: selectable
  • Speed of rotation: continuously adjustable
  • Projection lens: 85 mm Standard, exchangeable
  • LED service life (L70): 35,000 hours
  • Cooling: active, with fan – 26 dBA
  • Suitable for outdoor use – IP65

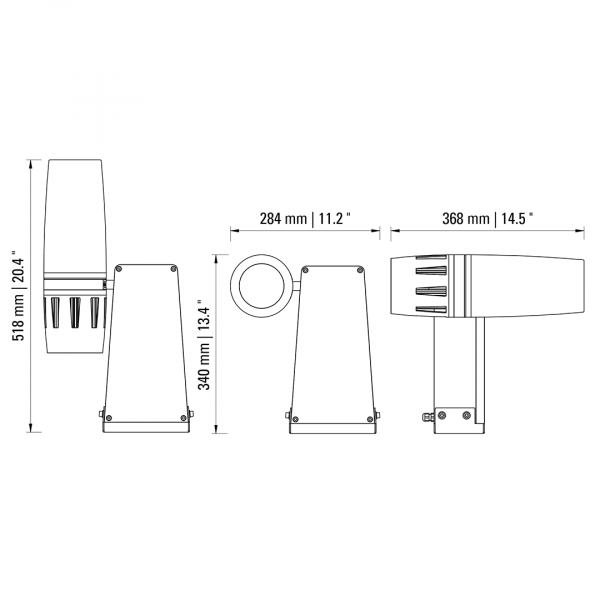

  • Dimensions (W x H x D): 368 x 340 x 284 mm
    14.5″ x 13.4″ x 11.2″
SKU: N/A

Description

Rotating images attract more attention. PHOS rotator lets the projected motif rotate permanently around its own axis. Rotation speed and direction are adjustable. PHOS rotator offers uncompromising brightness, thanks to its air-cooled high-power LED, which guarantees brilliant, high-contrast projections. Projected safety messages are clearly visible even in poorly lit areas and on uneven surfaces. The projection motif can be changed without tools. Several projection lenses with different focal lengths are available.

Image Size & Brightness

Projection Calculator PHOS 45 rotator

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

  • The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
  • The projection is at right angles to the projection surface.
  • The projection surface is a plane.
  • The distance is measured between lens and projection surface.

Downloads

Documents for Download

Technical Specifications PHOS 45 rotator outdoor

Information for Use PHOS 45–85 rotator
