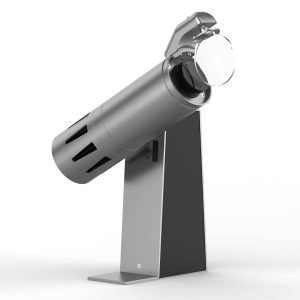

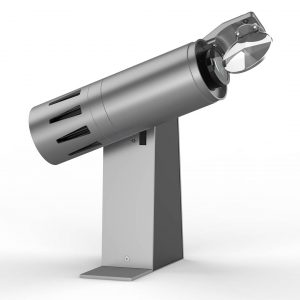

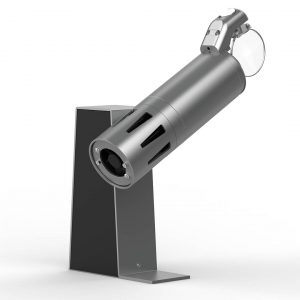

PHOS 85 move

Compact system for impressive lighting effects



Output power: 80 W
Luminous flux of the projector: 4,730 lumens
LED service life (L70): 35,000 hours
Cooling: active, with fan – 29 dBA
Gobo size / image size: Ø 50 / 40 mm
Projection lens: 85 mm Standard, non-interchangeable
Environment: dry interiors
Mounting style: mounting on surfaces

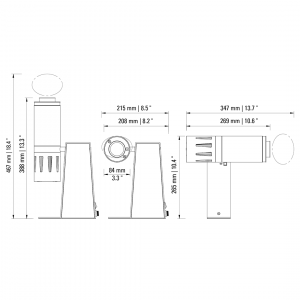

Dimensions (B x H x T): 269 x 265 x 208 mm
Housing colors: silver, white, black



Item number:

PHOS move stands out thanks to its versatility. Its easily changeable effect options allow flying or circling images to be projected onto any suitable projection surface. All effect options are motorized and move the projected images at different speeds and in both directions. A 3-button control panel integrated into the projector housing allows all settings to be easily adjusted. The projection motif can be changed without tools. With Derksen’s quick installation system, the projected image can be rotated and focused in a single step.

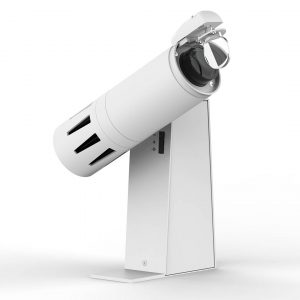

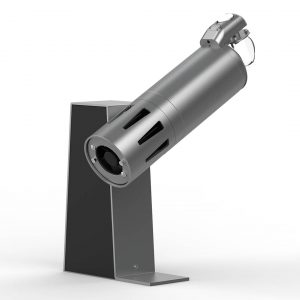

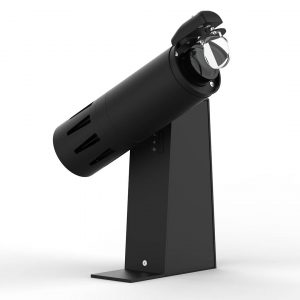

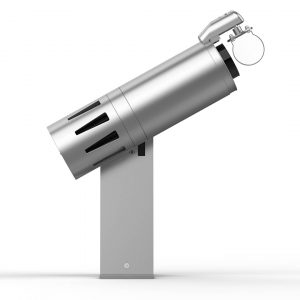

  • The 2-fold prism projects two additional images of the motif, which fly apart and merge again. Speed and direction can be adjusted. The projection can be directed onto any suitable surface, e.g., floor, wall, or ceiling, by rotating the effect module.
  • The 4-fold prism projects four additional images of the motif, which fly apart and merge again. Speed and direction can be adjusted. The projection can be directed onto any suitable surface, e.g., floor, wall, or ceiling, by rotating the effect module.

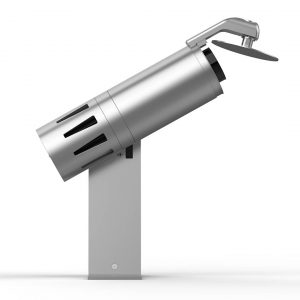

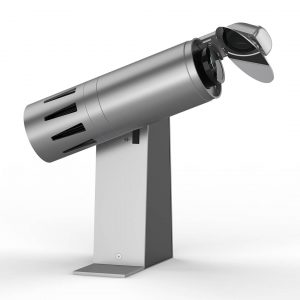

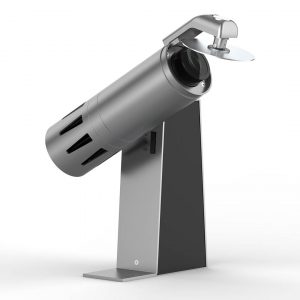

  • The circular mirror moves the projected motif on a circular path. The speed and direction can be adjusted. The projection can be directed onto any suitable surface, such as the floor, wall, or ceiling, by rotating the effect module on the projector head.
Projection Calculator PHOS 85 move

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

  • The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
  • The projection is at right angles to the projection surface.
  • The projection surface is a plane.
