PHOS 25 downlight

Compact LED projector with great effect

  • Output power: 22 W
  • Luminous flux of the projector: 1,570 lumens
  • Projection lens: 85 mm Standard, exchangeable
  • LED service life (L70): 35,000 hours
  • Cooling: active, with fan – 0 dBA

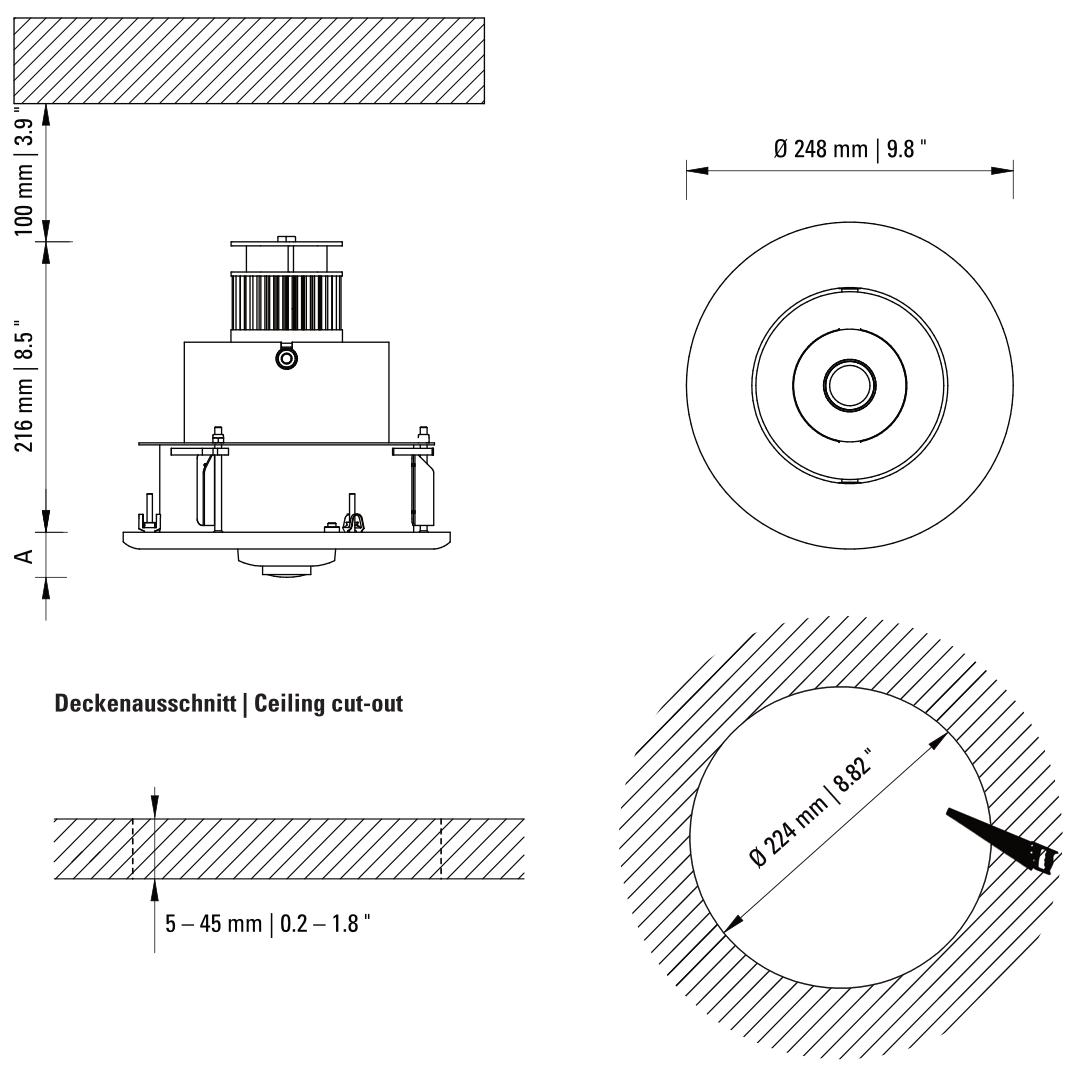

  • Dimensions (W x H x D): 248 x 236 x 248 mm
    9.8″ x 9.3″ x 9.8″
Clear
SKU: N/A

Description

PHOS 25 downlight is equipped with the latest LED technology and is passively cooled without a fan. This budget-priced entry level model is suitable for dry indoor environments and can be unobtrusively installed in false ceilings. The projector is perfect for applications in small shops, doctors’ offices and chemist’s shops, where an energy efficient operation is essential. The included electronic ballast is placed in the false ceiling. The projection motif (gobo) can be changed without tools.

Image Size & Brightness

Projection Calculator PHOS 25 Series

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

  • The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
  • The projection is at right angles to the projection surface.
  • The projection surface is a plane.
  • The distance is measured between lens and projection surface.

Downloads

Documents for Download

Technical Specifications PHOS 25 downlight (PDF)

Information for Use PHOS 25–85 downlight (PDF)
