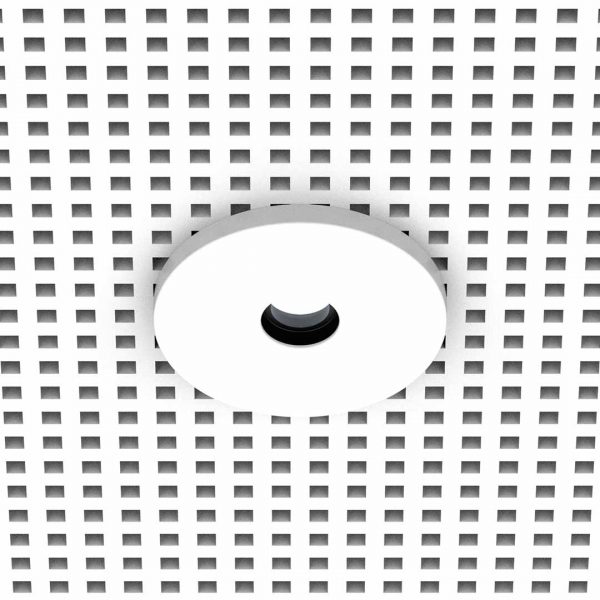

Kompakter Werbeprojektor für die Decke, von Derksen Lichttechnik, Gehäusefarbe weiß

PHOS downlight compact mit weißem Gehäuse, ein Gobo Projektor für den Einbau in die Zwischendecke.

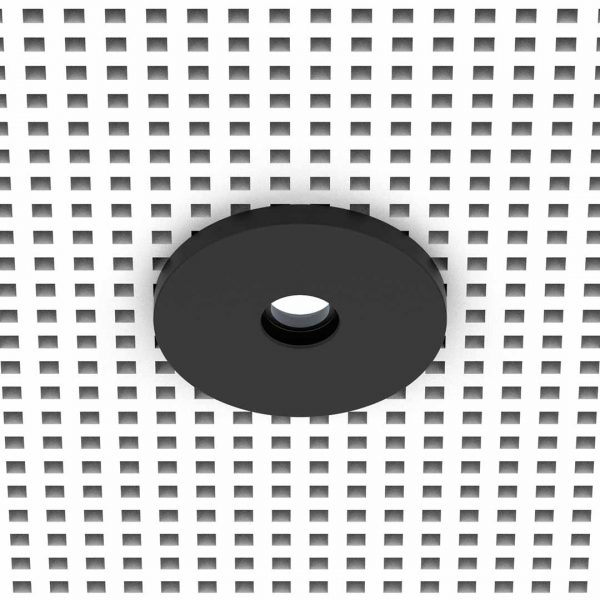

Kompakter Werbeprojektor für die Decke, von Derksen Lichttechnik, Gehäusefarbe schwarz

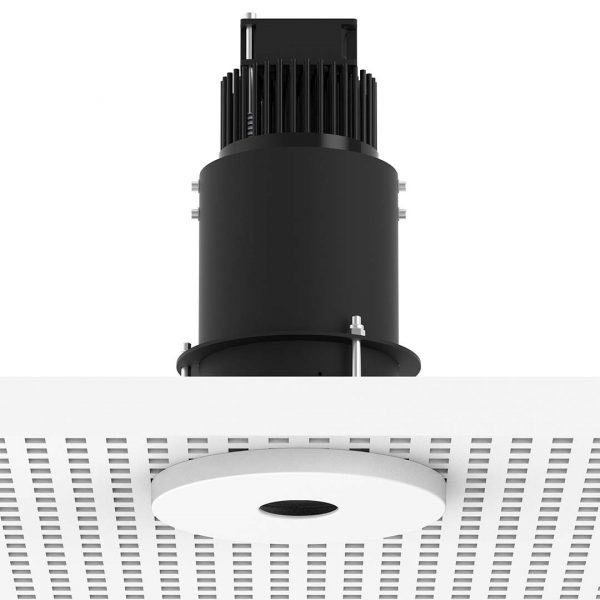

Gobo Projektor für Deckeneinbau, von Derksen Lichttechnik, Gehäusefarbe schwarz

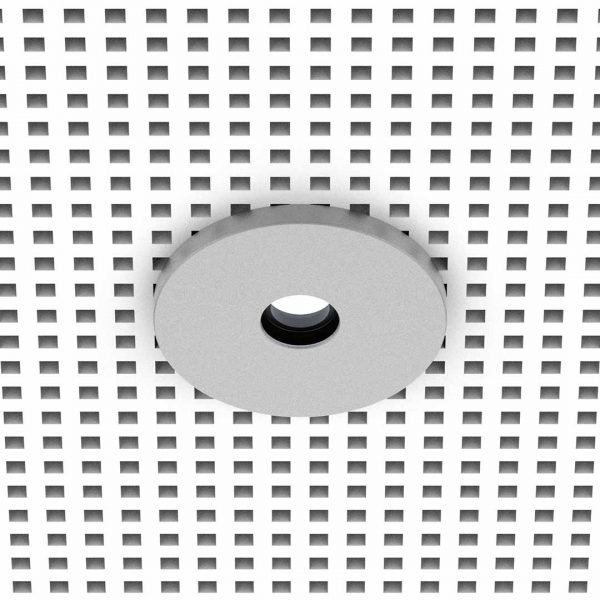

Kompakter Werbeprojektor für die Decke, von Derksen Lichttechnik, Gehäusefarbe silbern

Gobo Projektor für Deckeneinbau, von Derksen Lichttechnik, Gehäusefarbe Silber

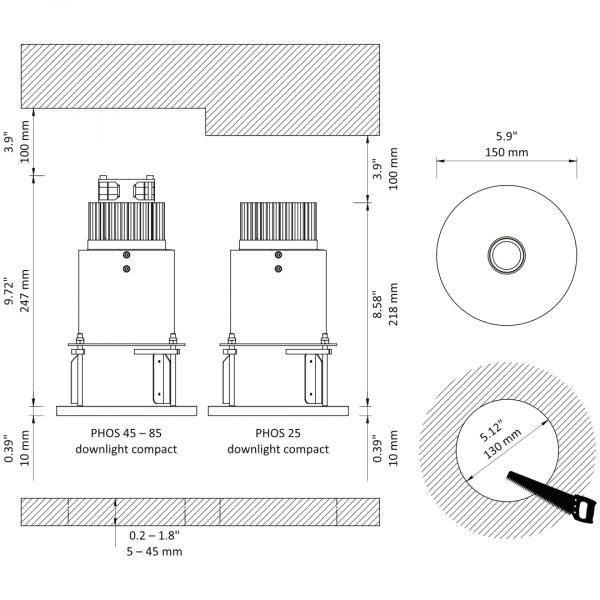

Linienzeichnung mit Bemaßungen von PHOS downlight compact

PHOS 45 downlight compact

Compact LED projector with great effect

Output power: 40W
Luminous flux of the projector: 2,390 lumens
Projection lens: 85 mm Standard
LED service life (L70): 35,000 hours
Cooling: active – 27 dBA
Dimensions (W x H x D): 150 x 257 x 150 mm
5.9″ x 10.1″ x 5.9″
NEW! Expected to be available from August 2023

Colour

SKU: N/A

Description

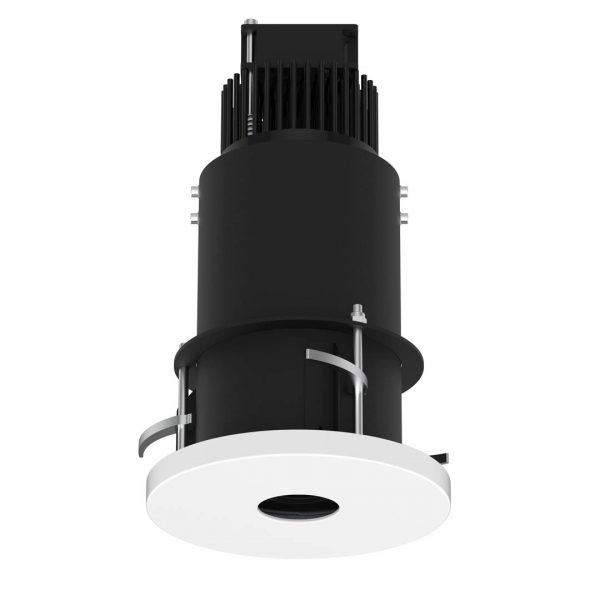

PHOS 45 downlight compact is a particularly small projector that can be installed almost invisibly in a false ceiling with a built-in diameter of only 130 mm. Setting up and focusing the projection is particularly quick thanks to the new magnetic mount and the rotating focus. PHOS 45 downlight compact is equipped with the latest LED technology and is cooled with a fan. The LED driver is supplied with the projector and is placed in the false ceiling. The projection motif (gobo) can be changed without tools.

	PHOS downlight	PHOS downlight compact

adjustable inclination:	-15° – +15°	not available
compatible lenses:	wide angle 45 mm wide angle 63 mm standard 85 mm telephoto 135 mm	standard 85 mm
deflecting mirror for projection onto walls:	optionally available	not available
installation diameter:	Ø 224 mm	Ø 130 mm
ceiling opening:	large, exposed	small, closed
projector head:	appears from the opening	is integrated in the ceiling
focusing:	shifting the lens	rotating the lens, with one hand

Image Size & Brightness

Projection calculator PHOS 45 downlight compact

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
The projection is at right angles to the projection surface.
The projection surface is a plane.
