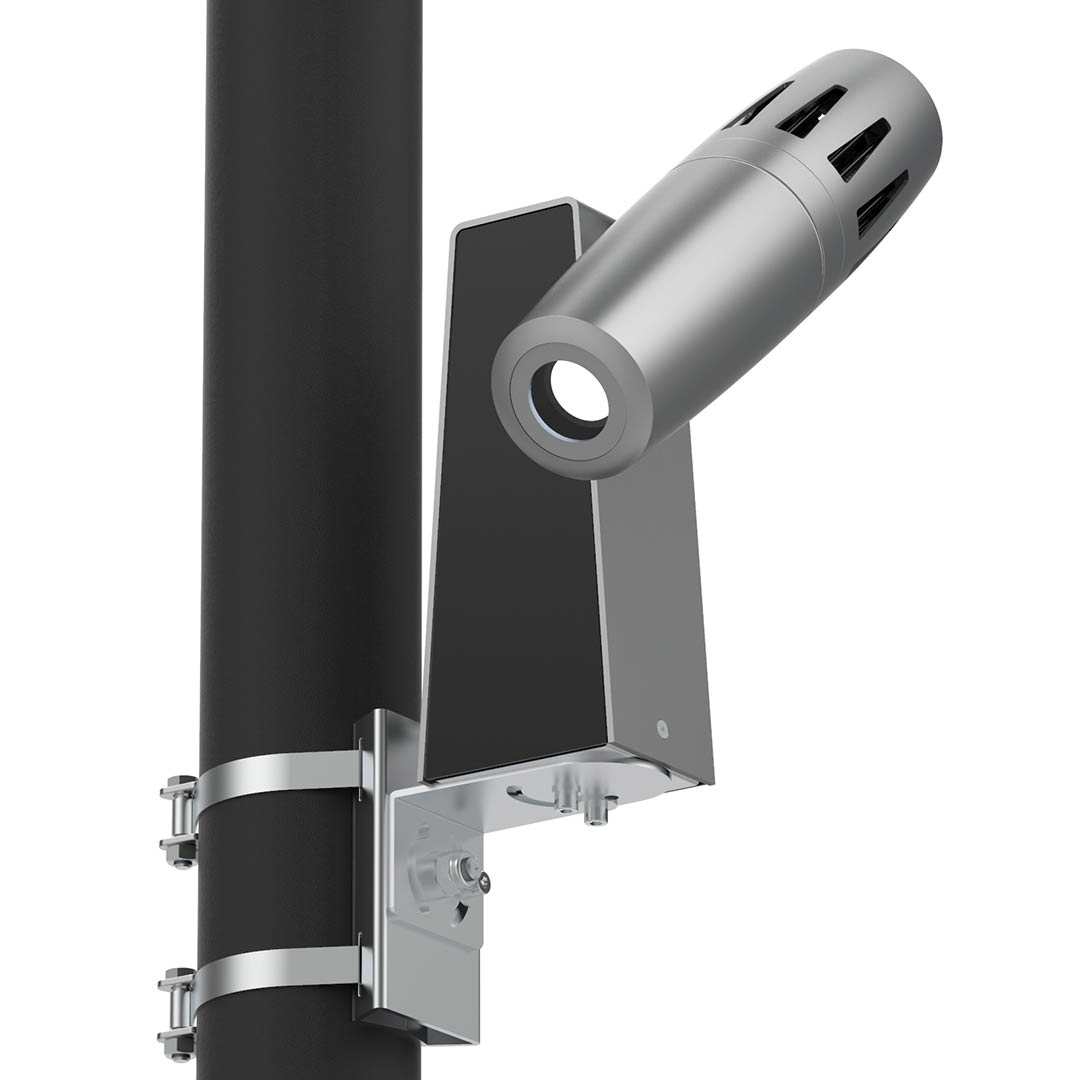

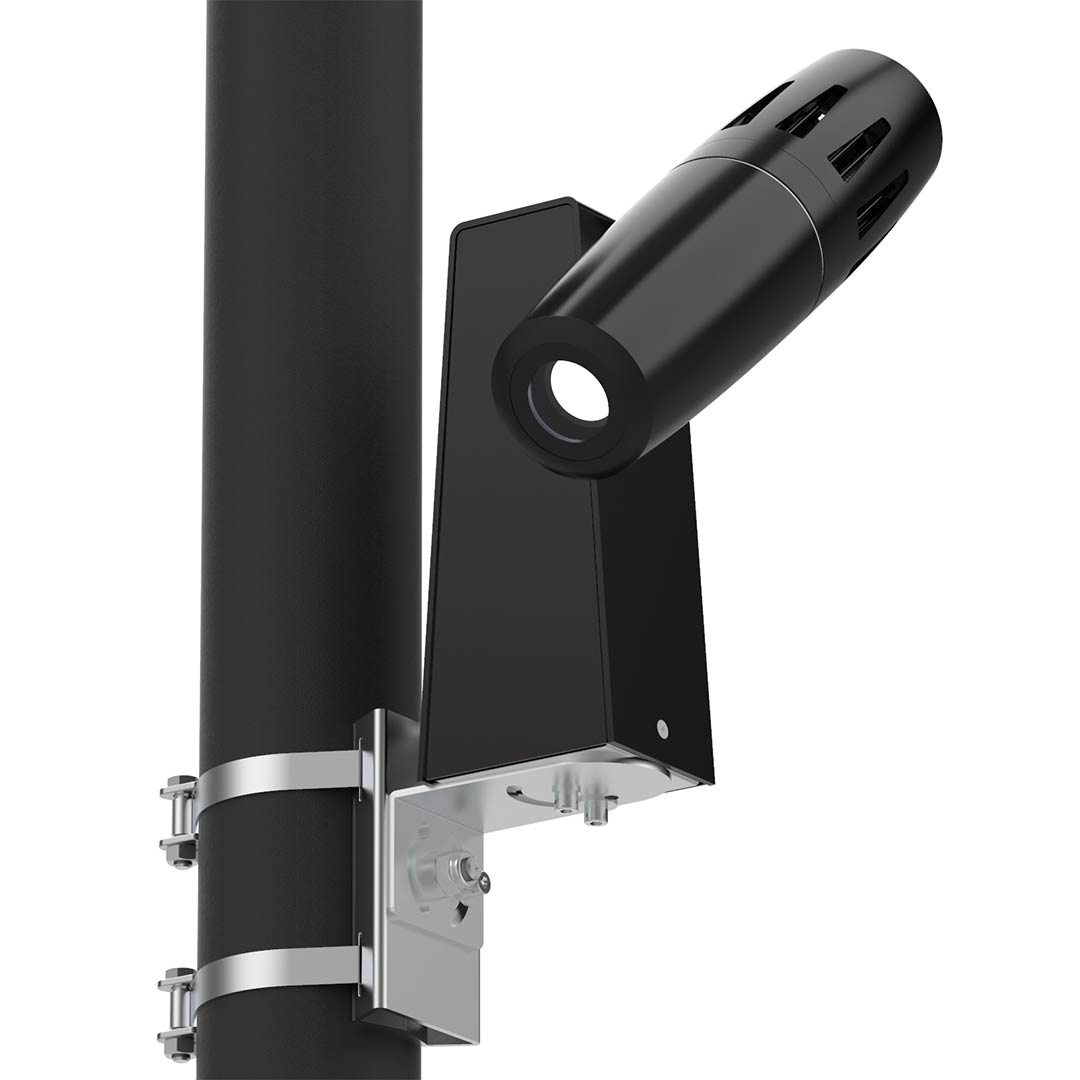

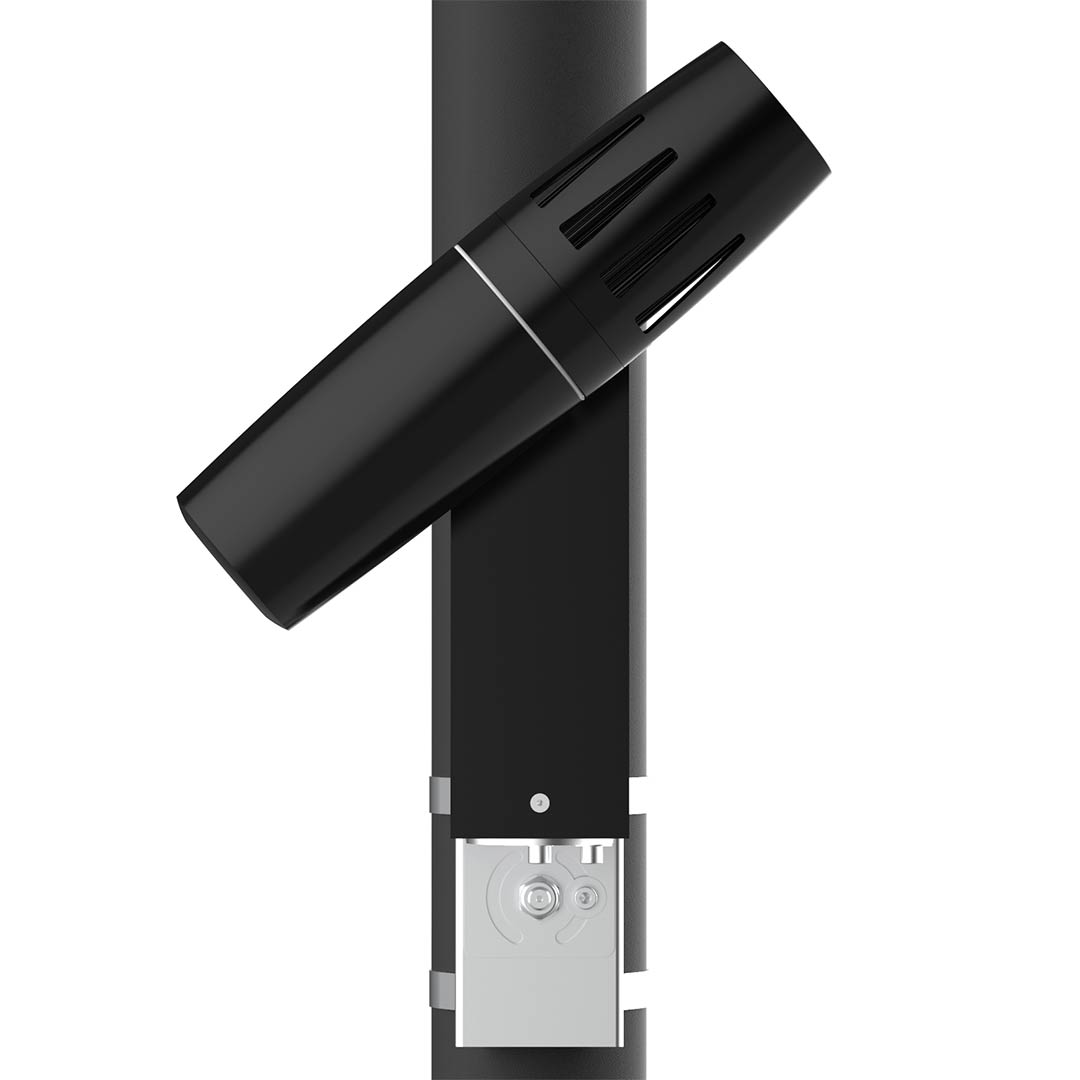

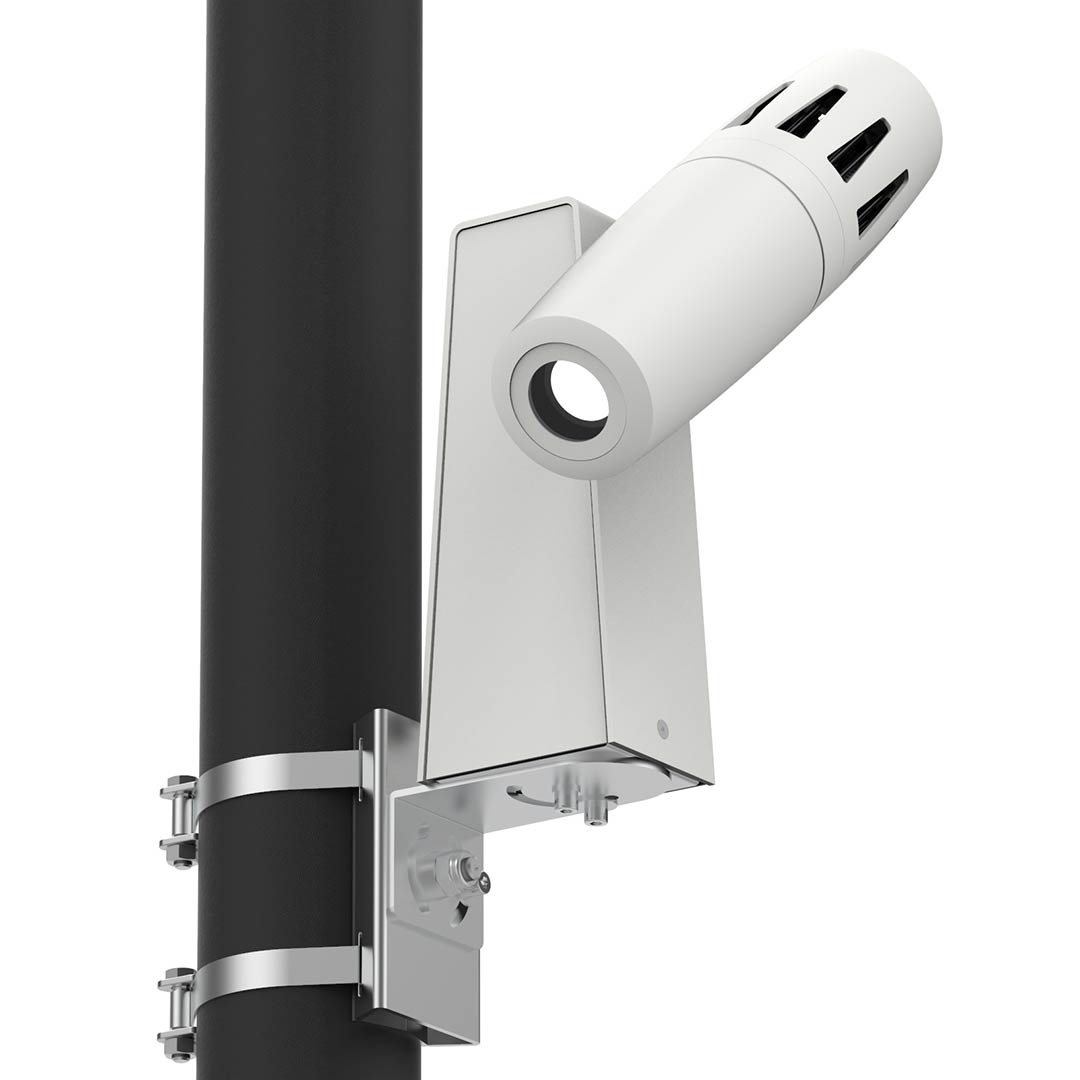

PHOS 45s pole mount

Compact LED projector with great effect

  • Output power: 40 W
  • Luminous flux of the projector: 2.390 lumens
  • Projection lens: 85 mm Standard, exchangeable
  • LED service life (L70): 35,000 hours
  • Cooling: active, with fan – 25 dBA
  • Suitable for outdoor use – IP64

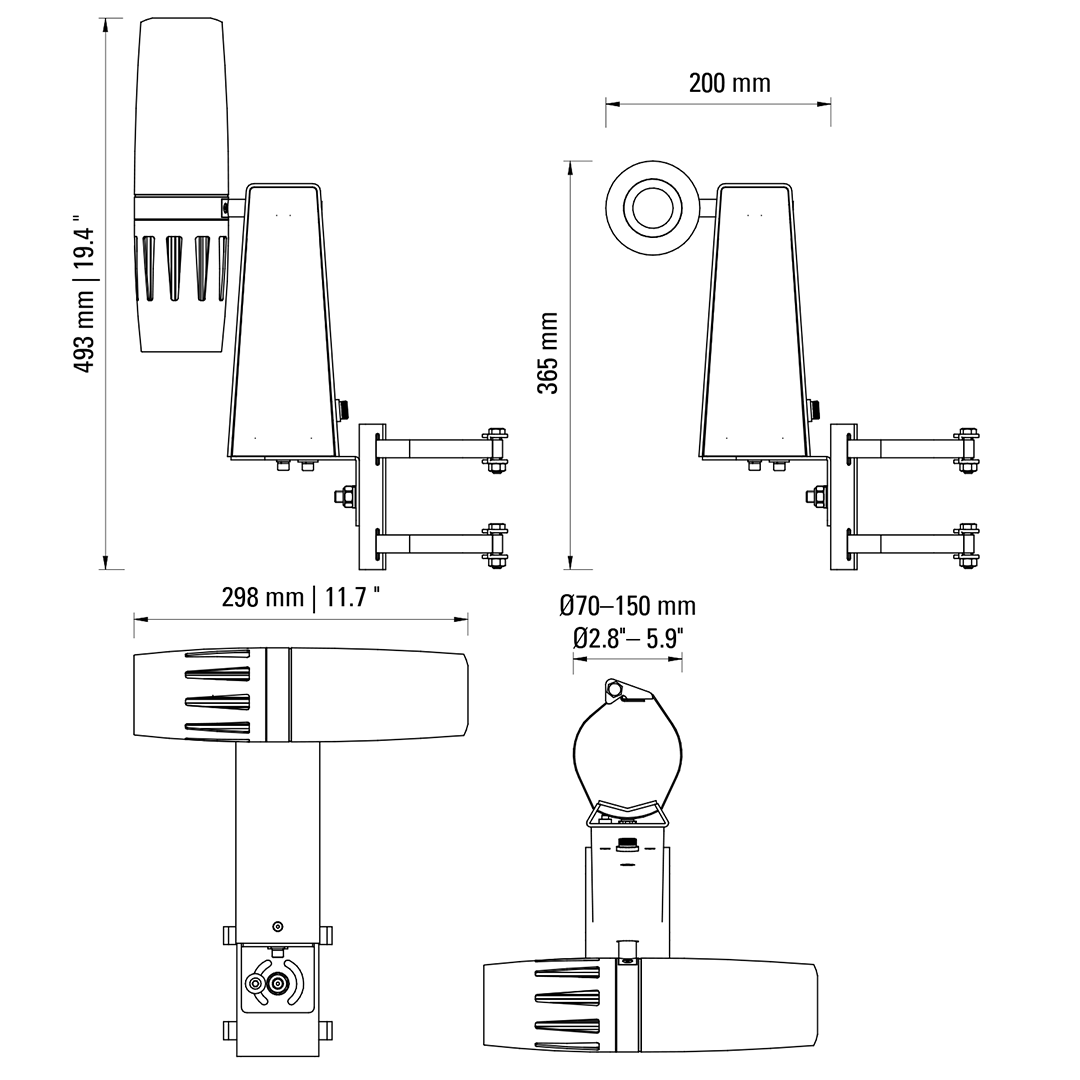

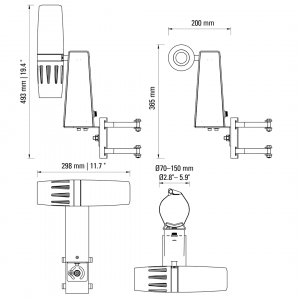

  • Dimensions (W x H x D): 298 x 365 x 200 mm
    11.7″ x 14.4″ x 7.9″
Clear
SKU: N/A

Description

The 40 Watt High-Power LED of PHOS 45s pole mount provides extra power. With its special holder the projector can be attached to poles or tubes and is suitable for year-round outdoor use or for damp interiors. The lens is equipped with a special gasket, which prevents the penetration of moisture. All encapsulated electronic components are waterproof. The ballast is already integrated in the housing. The projector is connected via a watertight connection tube. PHOS 45s pole mount is especially suitable for outdoor projections on facades or portals, messages on pavements or areas in pedestrian zones – up to a diameter of about 4 m (13 feet). The projection motif (gobo) can be changed without tools.

Image Size & Brightness

Projection Calculator PHOS 45 Series

Please note: The results shown are approximate values. In reality the results may differ slightly. The calculation applies under the following conditions:

  • The projection motif is circular and fills the image area of the gobo. Other shapes and objects, e.g. rectangles or fonts, are fitted into this maximum projection area.
  • The projection is at right angles to the projection surface.
  • The projection surface is a plane.
  • The distance is measured between lens and projection surface.

Downloads

Documents for Download

Technical Specifications PHOS 45s pole mount (PDF)

Instruction Manual PHOS 25-85s pole mount (PDF)
